Specifications
Measurement Assistant Function Allows Preparing an SOP to Ensure Measurements Are Always Performed Using the Same Conditions and Procedures
Creating, saving, and sharing measurement conditions and procedures, including pretreatment methods and conditions, ensures measurements are performed using the same conditions and procedures, even if performed by a different operator or at a different location or plant, and allows safely comparing data. Furthermore, when the measurement assistant function is used, instructions for the operator are displayed on the screen. This enables even inexperienced operators to perform measurements correctly.
In addition, administrators and operators can be assigned different operating privileges to ensure security.
Note: SOP is an acronym for Standard Operating Procedure.
Monitors Changes in Sample Status in Real Time
Particle size distribution data and light intensity distribution data can be displayed in real time. This means that sample changes over time or shifts in the dispersion status can be monitored in real time. Since both the light intensity distribution data, which is the raw data, and particle size data can be monitored simultaneously, they can be compared to keep track of any changes in the status of samples.
Seamless measurement over the entire range using a single measurement principle, single optical system, and single light source. The SLIT optical system continuously captures forward-scattered light at up to 60° on a single detection plane

The target particle size range is covered using a single measurement principle, single optical system, and single light source to achieve a perfectly seamless single wide range. Accurate particle size distribution measurements are possible across the entire measurement range using a single standard, as the instrument does not incorporate multiple optical systems that create discontinuities in the data.
The application of the SLIT optical system, based on sophisticated scattered light intensity tracing technology, smashes conventional wisdom to continuously capture forward-scattered light at up to a wide 60° angle on a single-detector face. This achieves high resolution in the fine particle region.
More Stable Optical System
The Omnidirectional Shock Absorption Frame (OSAF) is employed to fully isolate all elements of the optical system from the disturbances of shocks and vibrations.
High-Resolution/High-Sensitivity Wing Sensor II

Forward diffracted/scattered light is detected by a “wing sensor II”, a 76-element sensor that was developed using semiconductor manufacturing technology of the highest level. This sensor can detect greatly fluctuating small-angle forward scattering with a high level of resolution and wide-angle scattering of low optical intensity with a high level of sensitivity. Also, side scattered light is detected by one sensor element and back scattered light is detected by four sensor elements. Accurately capturing light intensity distribution patterns with a total of 84 sensor elements enables the high-resolution, high-precision measurement of particle size distributions over a wide particle diameter range.
Self-Diagnostic Functions Ensure Easy Maintenance

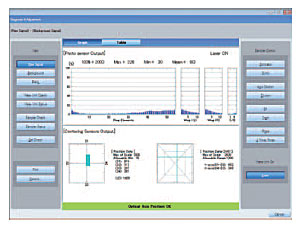

These analyzers incorporate powerful self-diagnostic functions. The output signals sent by the sensors and detecting elements, and the instrument operating status, can be checked, facilitating easier maintenance. Using the Operation Log function, detailed information about, for example, the instrument usage status and contamination of the cells is included with all the measurement data, making it possible to investigate the validity of measurement data obtained in the past.
Hardware
General Specifications
Measurement Principle | Laser Diffraction Method |
---|---|
Measurement Range | Particle size distribution measurement range : 7 nm to 800 μm Concentration display range: 40 nm (0.04 μm) to 20 μm |
Concentration Measurement Accuracy |
± 30 or less |
Concentration Range | Particle size 100 nm : 2 μg/mL to 12 μg/mL Particle size 1 μm : 0.5 μg/mL to 10 μg/mL Particle size 10 μm : 10 μg/mL to 180 μg/mL |
Note 1: The measurement range varies according to the shape, etc. of the particle.
Note 2: When concentration measurement accuracy measures the reference sample of our specification in a regular procedure.
Note 3: The concentration range varies according to the shape, etc. of the particle.
Measurement Unit: SALD-7500nano
Light Source | Semiconductor laser (Wavelength 405 nm) |
---|---|
Light Detector | Detector elements forviolet semiconductor laser Total 84 elements (78 forward, 1 side, 5 back) |
System Compliance | Class 1 Laser Product, CE compliant |
Required Power Supply | 115 or 230 VAC as ordered 100 VA |
Dimensions & Weight | W680 mm × D280 mm × H430 mm, 31 kg |
Operating Environment | Temperature: 10 to 30°C, Humidity: 20 to 80% (no condensation) |
Note 4: Reference sample and USB cable (2 m) supplied as standard
Batch Cell: SALD-BC75
Cell Material | Quartz glass |
---|---|
Required Liquid Volume | Approx. 5 mL |
Stirrer Mechanism | Up-and-down movement of blade |
Dimensions & Weight | W100 mm × D120 mm × H140 mm, 0.8 kg |
Operating Environment | Temperature: 10 to 30°C, Humidity: 20 to 80% (no condensation) |
Disposable Cell
Cell Material | Borosilicate glass, PVC (spacer) |
---|---|
Required Liquid Volume | Approx. 0.4 mL |
Software
WingSALD bio
Measurement and Data Display Functions | |
---|---|
Measurement of Particle Size Distribution | Allows measurements using measurement assistant function (interactive process based on SOP) |
Real-Time Display | Particle size distribution/light intensity distribution simultaneous display |
Display of Particle Size Distribution Data | Displays overlay of max. 200 distributions |
Display of Light Intensity Distribution | Displays overlay of max. 200 distributions |
Diagnostics/Adjustments | Self-diagnostic function and cell check function |
Statistical Data Processing | Max. 200 sets of data (also allows overlaying max. 200 data sets) |
Time-Series Processing | Max. 200 sets of data |
3-Dimensional Graphing | Max. 200 sets of data |
Data Transfer via Clipboard | [Image Output]: Outputs entire data sheet or graph only. [Text Output]: Outputs summary data, particle size distribution data, or light intensity distribution data. |
Data Sorting | Sorts by file name, sample ID, sample number, or refractive index |
Output Conditions | |
Particle Size (μm) Divisions | Fixed 51 or 101 divisions, User-settable 51 divisions |
Concentration (μg/mL) Divisions | Fixed 51 divisions, User-settable 51 divisions |
Distribution Basis | Count or Volume |
Expression of Cumulative Distribution | Oversized or undersized |
Expression of Frequency Distribution | q |
Smoothing Levels | 10 levels |
Distribution Function Fitting | Rosin-Rammler distribution, logarithmic Gaussian distribution |
Data Shifting | ±10 levels |
Report Function | Single data sets (6 templates), overlaid data (5 templates), statistical data, time-series data, or 3D data can be selected and output using batch processing |
Data Analysis Functions | |
Continuous Measurement Function | Continuously measures changes in particle size distributions and particle diameters over time, at intervals as short as one second, and saves the results. |
